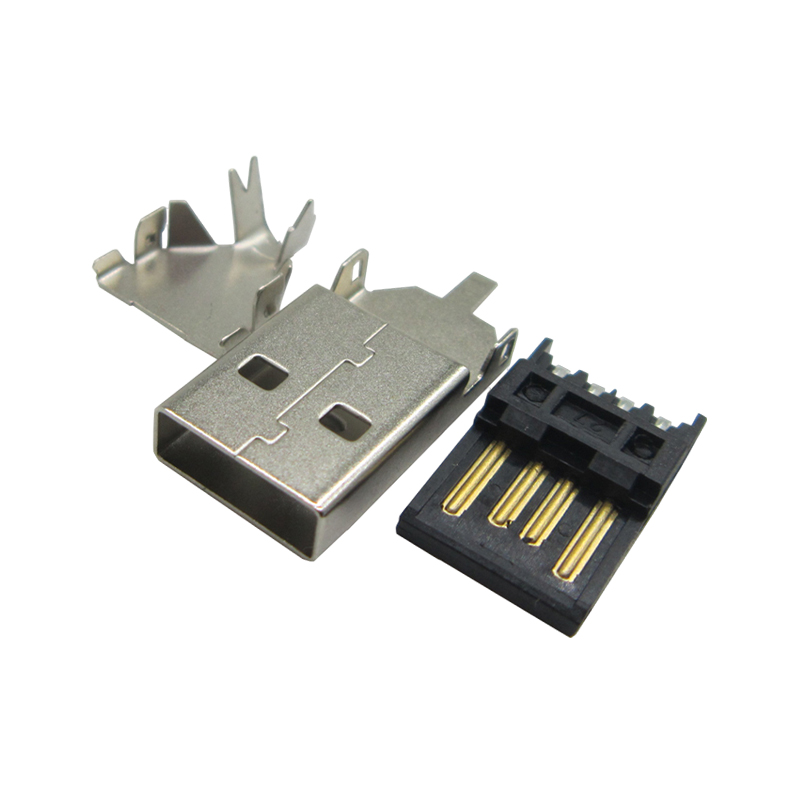

USB AM Short Body Three-Piece 28 Long
Computer data cable,
Mobile phone charging data cable
Communication data cable,
Device cable
Digital product data transmission cable.
Small appliance charging port
Rated current: 3A
Voltage: 250V/AC
Contact impedance: 30mΩ
The interface has two groups of signals (1 group for data transmission and 1 group for power supply)
Transmission speed up to 480 Mbit/s
Support USB hot plug

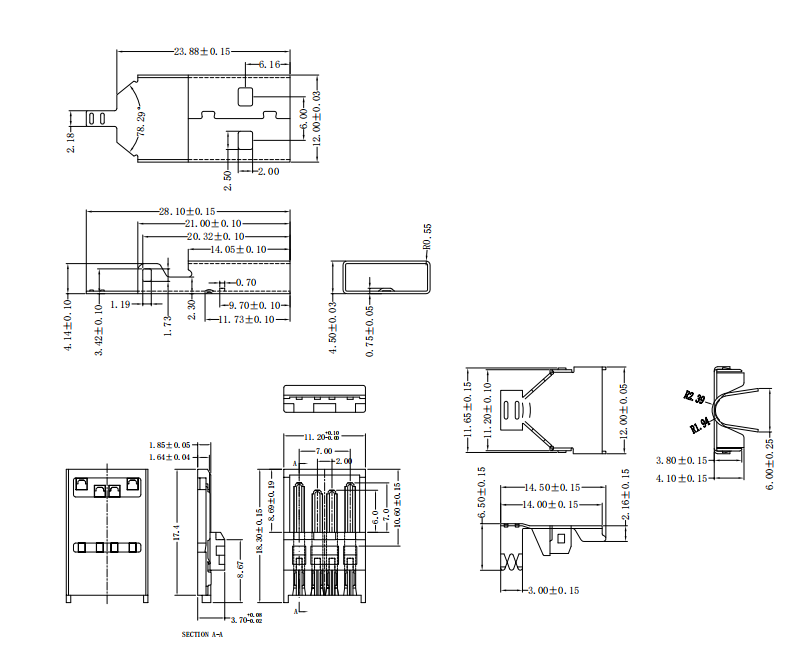

Total length 28, applicable wire OD3.2 OD4.0 OD4.5 OD5.0
Can be made of gold-plated, nickel-plated, PIN30U regular GF
Complies with USB2.0 Association standards
Insertion force: 35N Max
Pull-out force: 8N Min
Plug-in life: 1500 times
