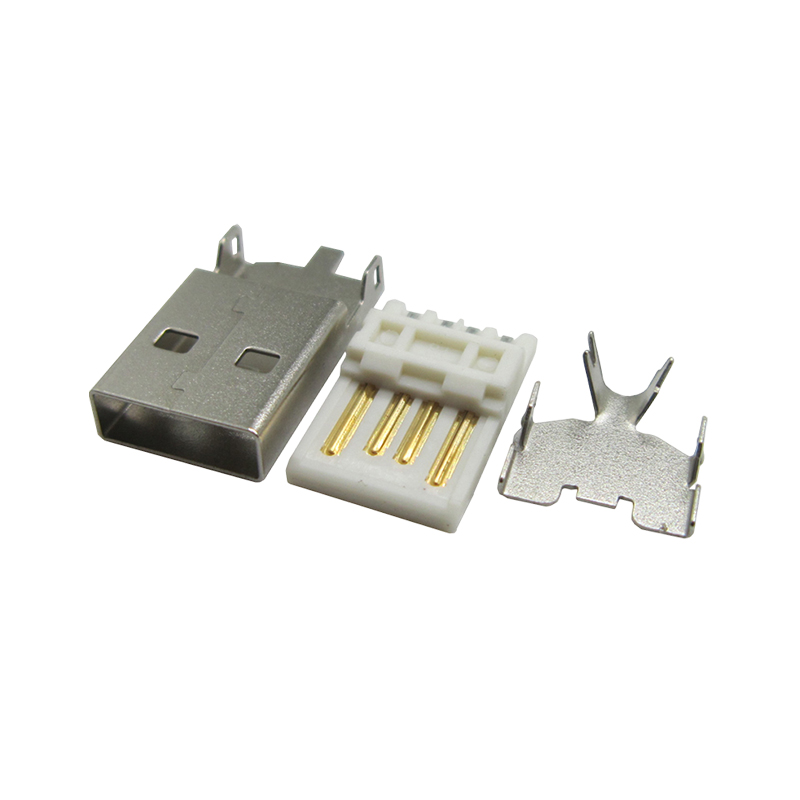

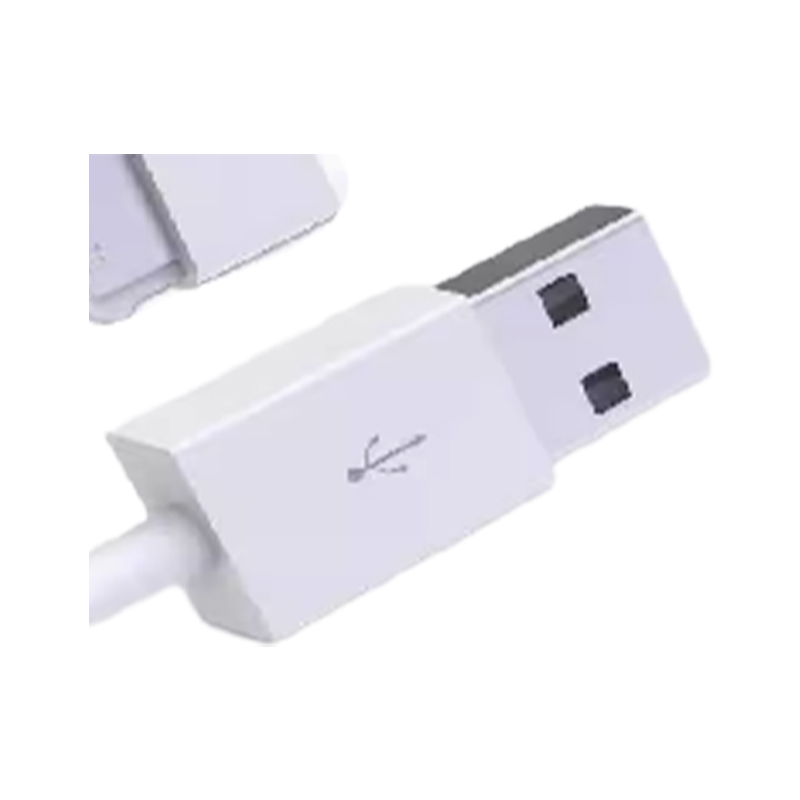

USB AM Short Body Three-Piece 25.5
Computer data cable,
Mobile phone charging data cable
Communication data cable,
Device cable
Digital product data transmission cable.
Small appliance charging port
Rated current: 3A
Voltage: 250V/AC
Contact impedance: 30mΩ
The interface has two groups of signals (1 group for data transmission and 1 group for power supply)
Transmission speed up to 480 Mbit/s
Support USB hot plug

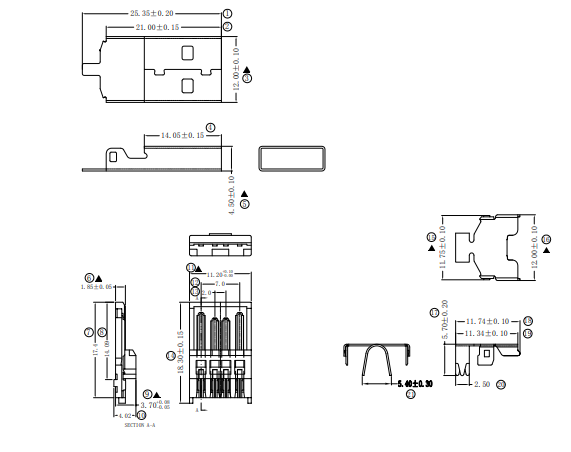

Total length 25.5, applicable wire OD3.2 OD5.0
Can be used for shell gold plating, nickel plating, PIN30U conventional GF
After the product is molded, the connector is exposed without card points, and the connector shell structure is special. The seamless tearing process is adopted, and the appearance is smoother
Complies with USB2.0 Association standards
Insertion force: 35N Max
Pullout force: 8N Min
Plug-in life: 1500 times
