USB AM Three-Piece
Computer data cable,
Mobile phone charging data cable
Communication data cable,
Device cable
Digital product data transmission cable.
Small appliance charging port
Rated current: 3A
Voltage: 250V/AC
Contact impedance: 30mΩ
The interface has two sets of signals (1 for data transmission and 1 for power supply)
Transmission speed up to 480 Mbit/s
Support USB hot plug
Total length 36, suitable for wire OD2.8 OD4.2 OD5.0 and OD3.2+OD4.2 double parallel lines

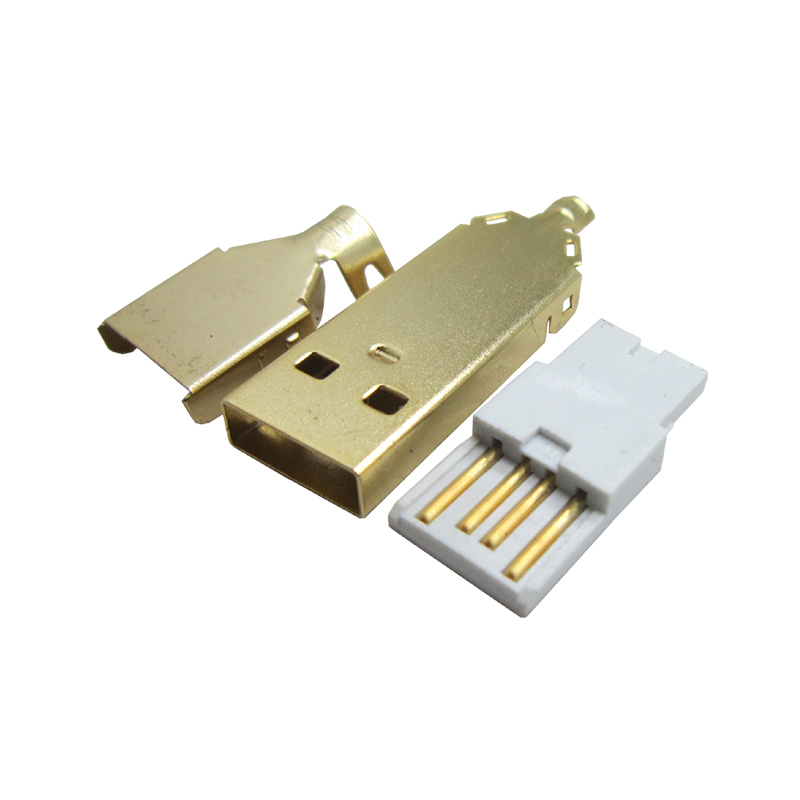

Can be made of gold-plated, nickel-plated, PIN30U conventional GF

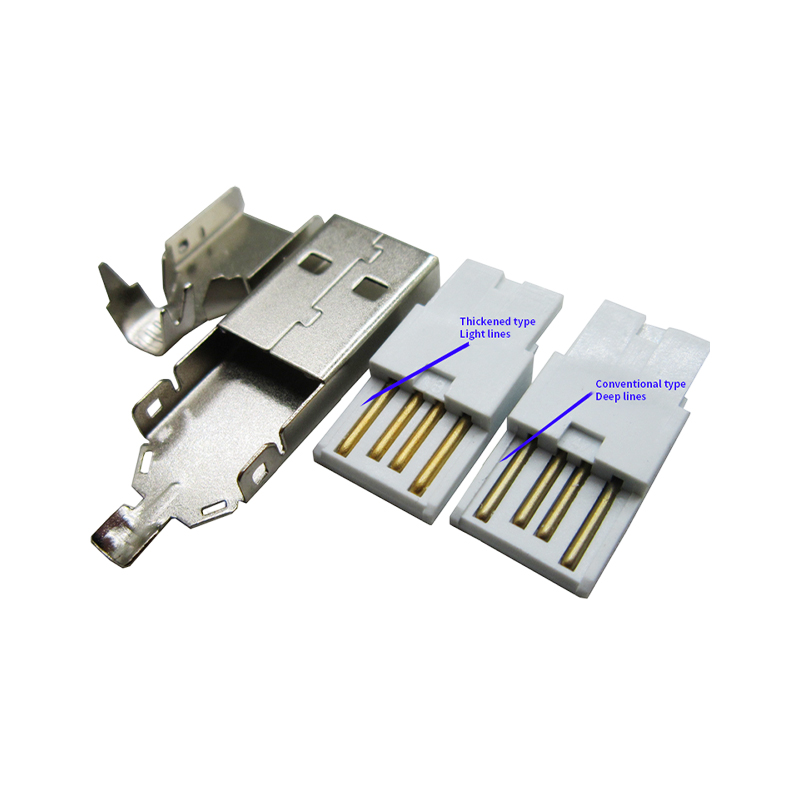

The rubber core is divided into thickened and non-thickened plug tongues (the insertion force and extraction force of thickened products are relatively upper limits, and the durability is longer)
Complies with USB2.0 Association standards
Insertion force: 35N Max
Extraction force: 8N Min
Plug-in life: 1500 times
