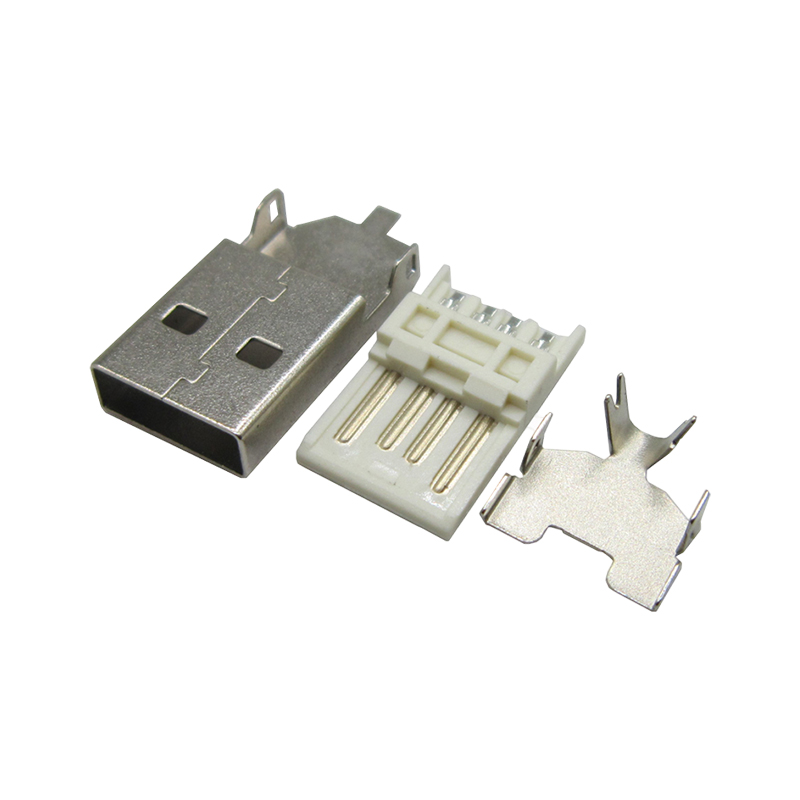

USB AM Short Body Three Pieces 26.5
Computer data cable,
Mobile phone charging data cable
Communication data cable,
Device cable
Digital product data transmission cable.
Small appliance charging port
Rated current: 3A
Voltage: 250V/AC
Contact impedance: 30mΩ
The interface has two groups of signals (1 group for data transmission and 1 group for power supply)
Transmission speed up to 480 Mbit/s
Support USB hot plug

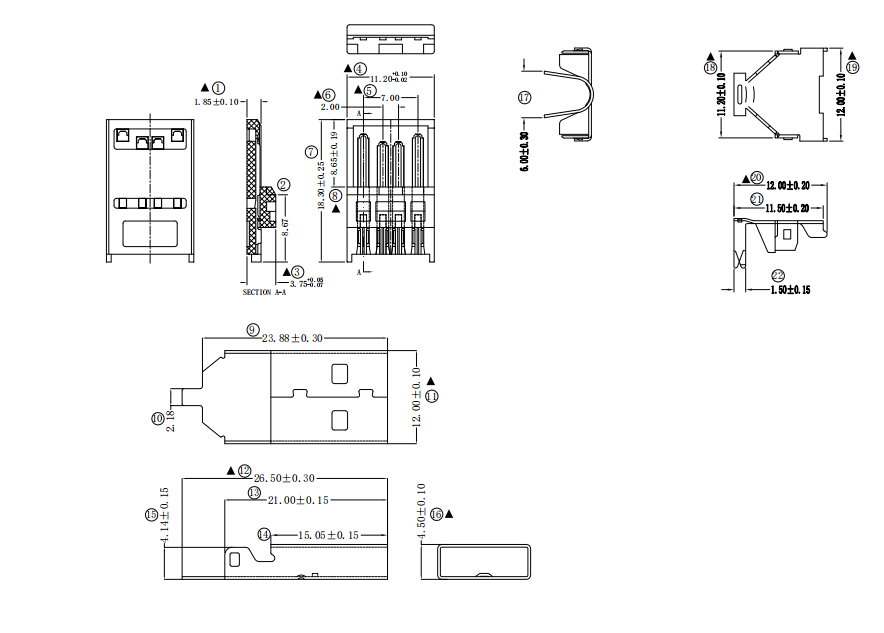

Total length 26.5, applicable to wire OD3.0 OD4.0
Can be gold-plated, nickel-plated, PIN30U conventional GF
Preferred connector for shorter outer mold size or smaller products, shorter wires
Complies with USB2.0 Association standards
Insertion force: 35N Max
Pullout force: 8N Min
Plug-in life: 1500 times
