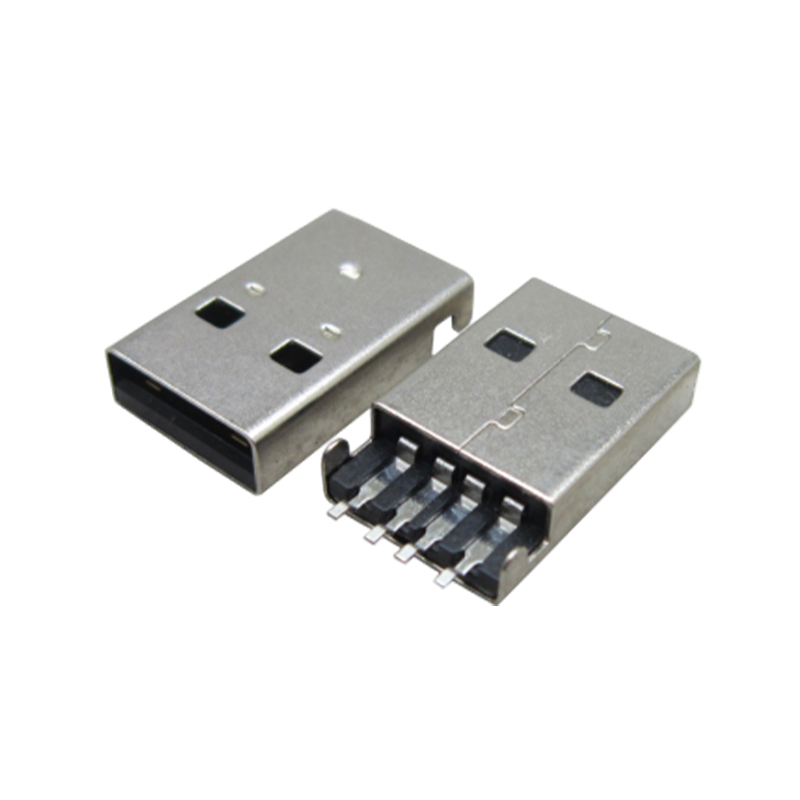

USB AM Sinker Finished Product
Computer data cable,
USB flash drive, bank USB shield, chassis socket
USB HUB, etc.
Rated current: 3A
Voltage: 250V/AC
Contact impedance: 30mΩ
The interface has two sets of signals (1 for data transmission and 1 for power supply)
Transmission speed up to 480 Mbit/s
180 degree SMT USB, 90 degree sinking USB, USB for USB flash drive
Support USB hot plugging
Complies with USB2.0 Association standards
Insertion force: 35N Max
Extraction force: 8N Min
Plug-in life: 1500 times
